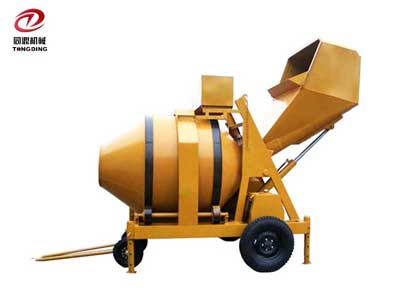

TD-JZR350 Diesel Engine Concrete Mixer

Description TD-JZR350 Diesel Engine Concrete Mixer:
TD-JZR350 diesel engine concrete mixer is widely used in building site, road and bridge project, and many other construction sites. It is of bigger capacity, self-falling type. It is suitable for mixing plastic and low-slump concrete. The aggregate size is required to be smaller than 60 mm.

Features of TD-JZR350 Diesel Engine Concrete Mixer:
1. It is a middle capacity self-dumping mixer;
2. Heavy duty channel chassis provides durability and stronger support in the areas where you need it;
3. Jack legs give maximum stability throughout the mixing cycle;
4. Towable chassis with pneumatic tyred wheels;
5. Hopper lifting model: Hydraulic tipping hopper. Steel wire rope hoisting tipping hopper is available.
6. Power source: diesel engine. So it can also be used in areas without electricity supply.

Parameters of TD-JZR350 Diesel Engine Concrete Mixer:

Model	TD-JZR350
Charging Volume	560 litre
Discharge Volume	350 litre
Capacity Per Hour	10~14m³/h
Capacity of water tank	110L
Power source	diesel engine, single cylinder, water-cooled with battery starter
Power	11KW
Drum rotating speed	13r.m.p
Max. towing speed	20km/h
Towing	Two/four-towing wheels
Dimension	3250x2240x3200mm
Total Weight	1790/1840kg
Hopper Lifting Model	Hydraulic tipping hopper
