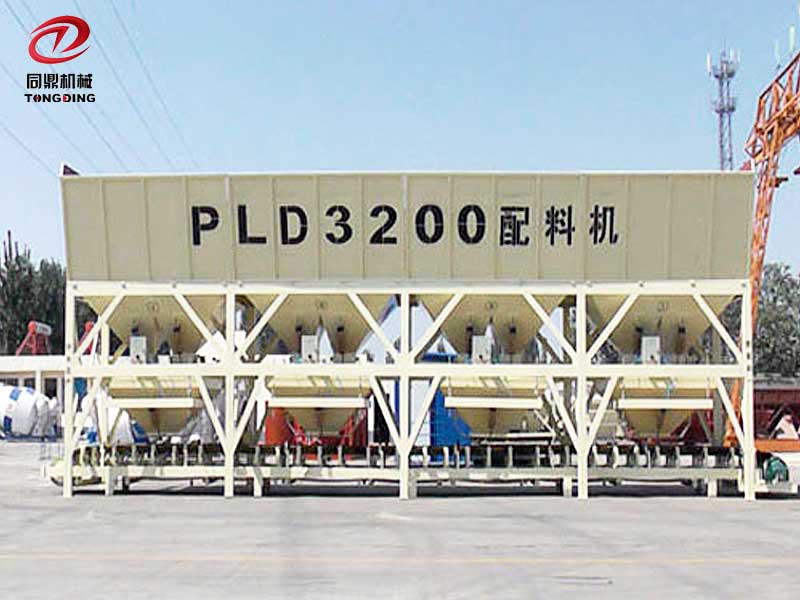

Descriptions of PLD Series Concrete Batching System:
Concrete batching machine is the sand batching device with loading machine or belt conveying machine feeding, it can batching more than three kinds of material, and use with all kinds of concrete mixers and other measurement device, can combination into automatic and semi-automatic concrete mixing plants, the machine can be effective of guarantee mix proportion accuracy of fine sand, middle sand and stones, improve the quality of concrete mix proportion, is the ideal batching machine of various concrete mixing plants.
Features of Concrete Batching System:
Advantages Of PLD Series Concrete Batching System:
1. Perfect humanization Electrical control system
Parameters of PLD Series Concrete Batching System:
| Item | Unit | TD-PLD 2400-3 | TD-PLD 3200-4 | TD-PLD4800-4 |
| Scale hopper volume | Liter | 2400×3 | 3200×4 | 4800×4 |
| Storage hopper volume | m3 | 3×12 | 4×20 | 4×25 |
| Productivity | m3/h | ≥120 | ≥160 | ≥280 |
| Batching precision | ±2% | ±2% | ±2% | |
| Max weighting | kg | 4000 | 5000 | 8000 |
| Aggregate number | 3 | 4 | 4 | |
| Feeding height | mm | 3200 | 3500 | 3800 |
| General power | kW | 11 | 11 | 15 |
| Weight | kg | 10500 | 12600 | 13600 |
| Dimension (L*W*H) | mm | 9820×2840×3900 | 13500×2900×4450 | 15520×3900×5090 |
| Division value checking | kg | 2.0 | 2.0 | 2.0 |
| Optional Aggregate Belt | Fixed or movable aggregate feeding belt | |||
1 Weighing system adopts world famous brand sensors to ensure accurate weighing.
2 It can be configured cumulative measuring method and independent measuring method according to the size of concrete mixing plant.
3 PLD series concrete batching machine can independently finish aggregate batching requirements. And it is with high weighing accuracy, high precision, high speed, simple operation and many other
| Item | Unit | TD-PLD 2400-3 | TD-PLD 3200-4 | TD-PLD4800-4 |
| Scale hopper volume | Liter | 2400×3 | 3200×4 | 4800×4 |
| Storage hopper volume | m3 | 3×12 | 4×20 | 4×25 |
| Productivity | m3/h | ≥120 | ≥160 | ≥280 |
| Batching precision | ±2% | ±2% | ±2% | |
| Max weighting | kg | 4000 | 5000 | 8000 |
| Aggregate number | 3 | 4 | 4 | |
| Feeding height | mm | 3200 | 3500 | 3800 |
| General power | kW | 11 | 11 | 15 |
| Weight | kg | 10500 | 12600 | 13600 |
| Dimension (L*W*H) | mm | 9820×2840×3900 | 13500×2900×4450 | 15520×3900×5090 |
| Division value checking | kg | 2.0 | 2.0 | 2.0 |
| Optional Aggregate Belt | Fixed or movable aggregate feeding belt | |||
